Magnetics
Power inductors and a short run of common-mode chokes.
The shielded drum and the common-mode choke share a cabinet and nothing else. One stores energy. The other rejects noise on a pair.
Power inductors and a short run of common-mode chokes.
The shielded drum and the common-mode choke share a cabinet and nothing else. One stores energy. The other rejects noise on a pair.

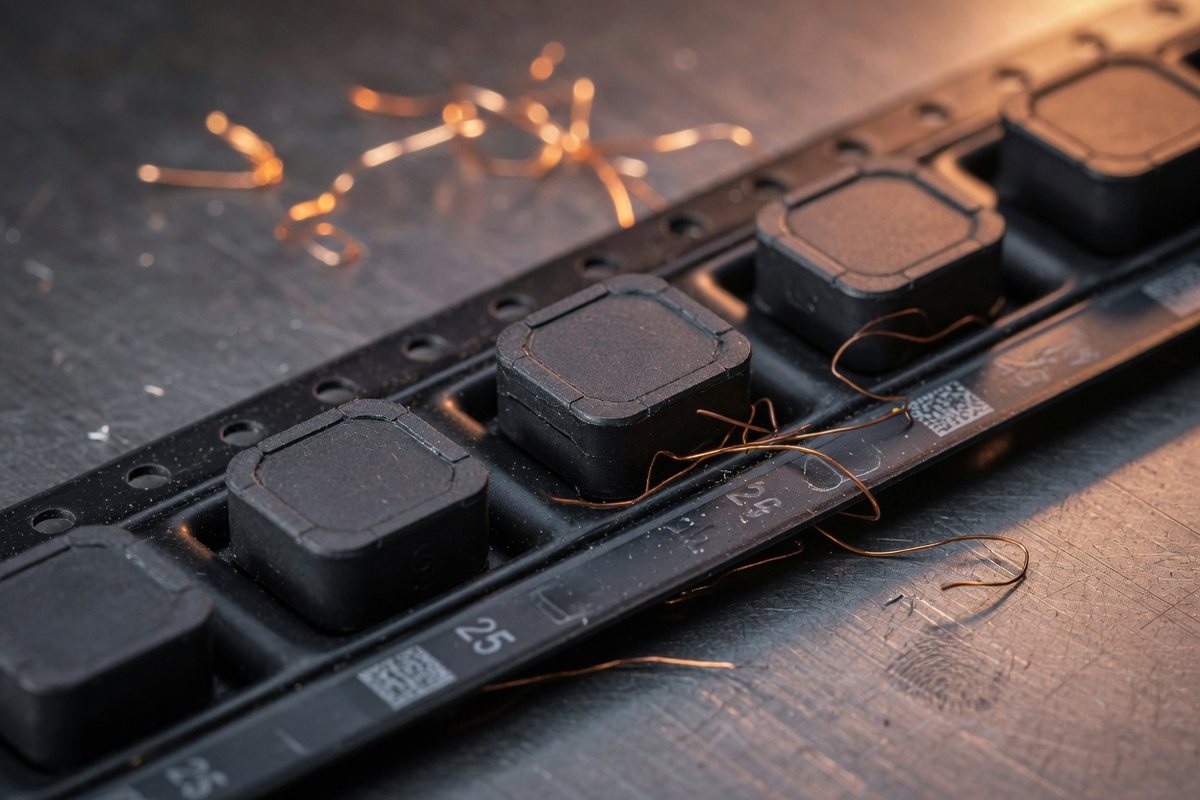

4.7 µH shielded 3 A

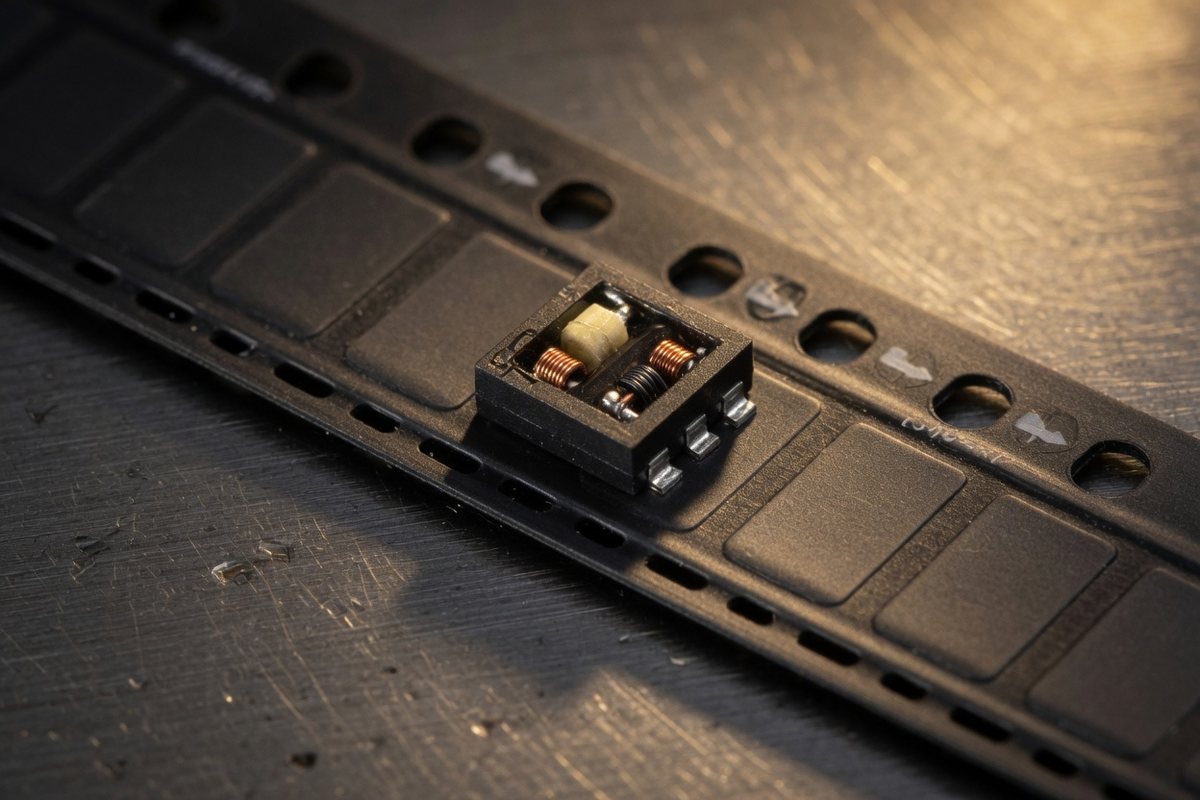

Common-mode choke 51 µH
